PA 28 RT DUAL GI 275 Installation


  • GI 275 ADAHRS + AP, Class I/II as ADI
  • GI 275 ADAHRS + AP, Class I/II as HSI
    • With GMU 11
    • Switchable HSI, GPS MAP, STBY ADI

both interfaced to the legacy Century II Autopilot

  • GTN 750 XI COM / NAV /GPS

interfaced to both GI 275 and GTX 330ES ADS-B Out Tranponder

  • Golze ADL 140
    • In Flight Iridium Weather Receiver

Interfaced with Pilots IPAD

  • Air Traffic AT-1
    • Flarm Tranceiver
    • ADS-B In Receiver

Interfaced with GTN 750XI and GI 275 GPS MAP

GI 275 ADI

-Save weight and maintenance expense: replace that aging vacuum pump-driven attitude indicator — such as the KI-256 — with a reliable solid-state ADAHRS-driven GI 275 electronic display.

-To add situational awareness, your display can overlay attitude reference on an optional Garmin SVT™ synthetic vision landscape with flight path marker integration.

-As your primary flight reference instrument, GI 275 features an integrated display to support all the essential readouts — attitude, altitude, airspeed and heading.
GI 275 ADI

GI 275 HSI

-In addition to primary magnetic heading reference, GI 275 can accept inputs for VOR/LOC and/or GPS course guidance — along with distance and groundspeed indications.

-For climb/descent profiles and approaches, GI 275 can display both vertical and lateral GPS/VOR/LOC course deviation cues, when available.

-With appropriate Nav inputs, GI 275 can optionally add HSI course guidance overlaid on a moving map display with flight plan legs, terrain, weather and more.
GI 275 HSI

Dual GI 275

-With dual GI 275 displays as your primary flight instrumentation, reversionary backup capability retains attitude and heading data5 on the remaining HSI or MFD if an outage should occur.

-The touchscreen on GI 275 makes accessing its functions a breeze. A traditional concentric knob is also available for those who prefer that style of data input.

-Know you’ll get home with up to 60 minutes of optional backup battery power.

-Connect your cockpit with built-in Wi-Fi® connectivity and BLUETOOTH® technology.
Dual GI 275

On the Point

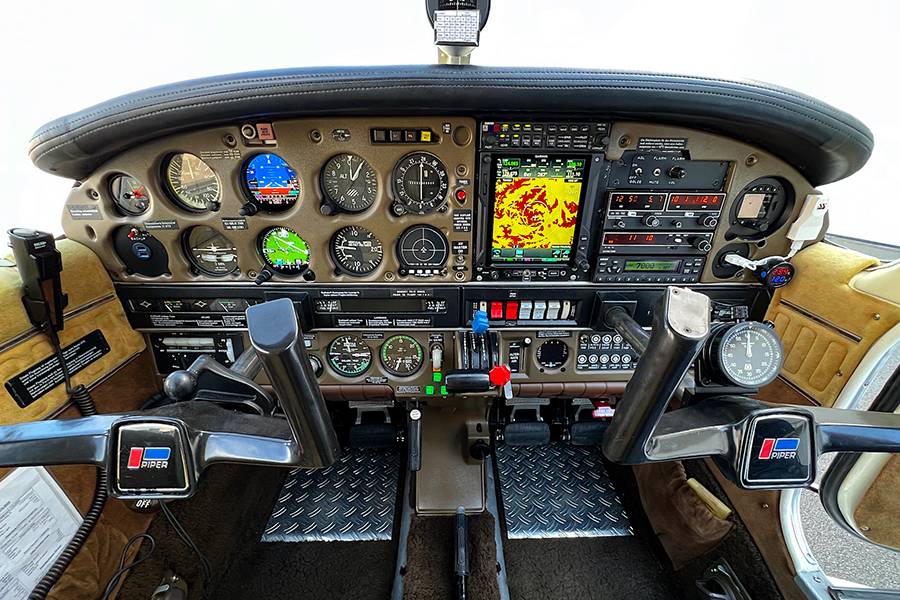

Dual GI 275 with GTN 750Xi
GI 275 ADI
GSB 15 for Database Update and USB Charging
Iridium WX & Flarm Traffic
GI 275 as HSI / GPS Map and Stby ADI
